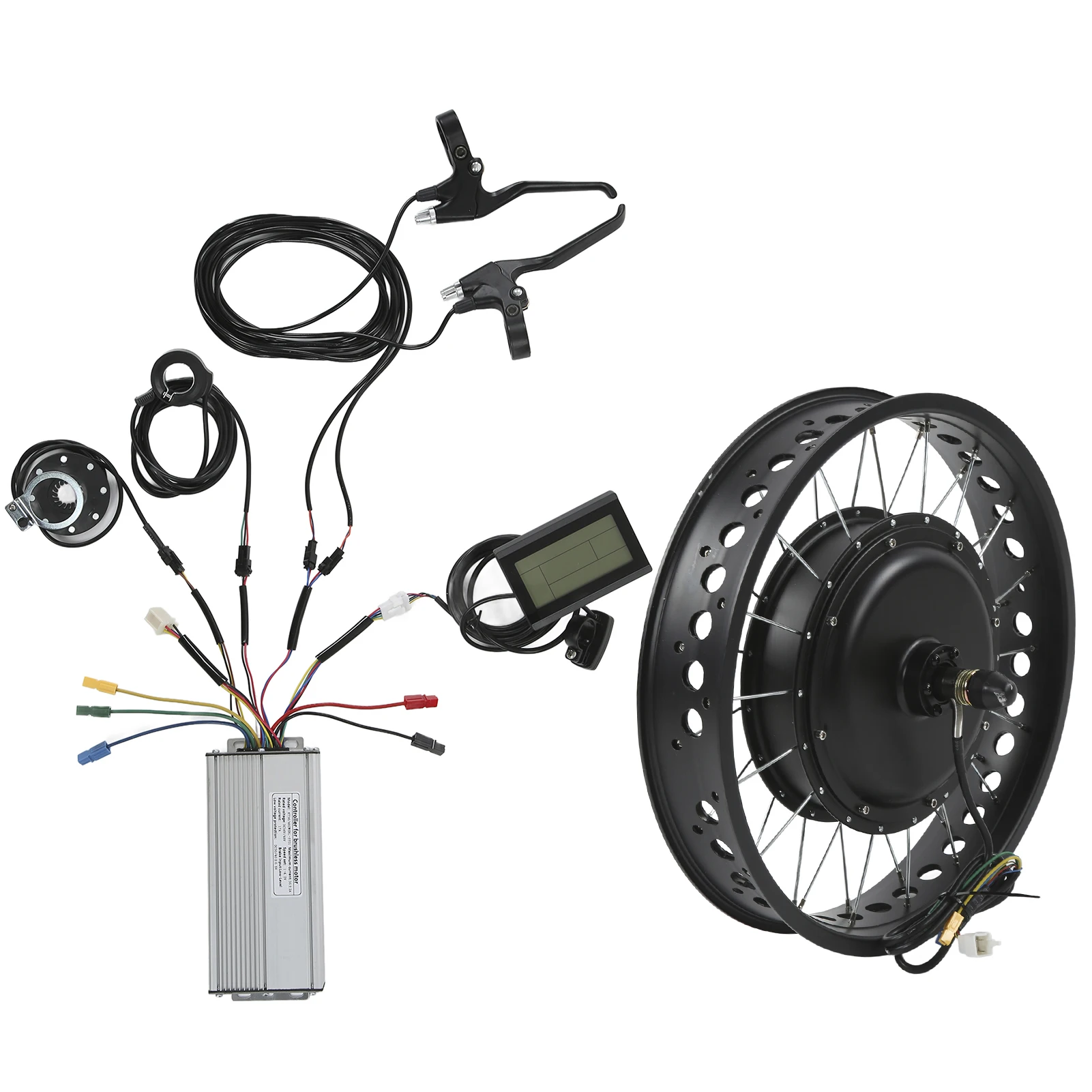

Transform your ride with the 20-inch Fat Tire Rear Wheel Electric Bike Conversion Kit, designed for power and versatility. This kit features a robust 48V 1500W motor, providing impressive acceleration and hill-climbing capabilities, making it ideal for urban commuting or off-road adventures. The durable fat tire design ensures superior traction and stability on various terrains.

Included in the kit is the KT 35A controller, which optimizes performance and efficiency, along with an LCD3 display that offers real-time data on speed, battery level, and distance traveled. This user-friendly interface makes it easy to monitor your ride and adjust settings on the go.

Whether you’re looking to upgrade your existing bike or create a custom e-bike, this conversion kit delivers a seamless installation process and enhances your cycling experience. Get ready to enjoy a thrilling ride with enhanced power and control!







Specification:

Item Type: Electric Bike Tire Conversion Kit
Material: Stainless Steel + Aluminum Alloy + Plastic
Product Color: As Pictures Shown

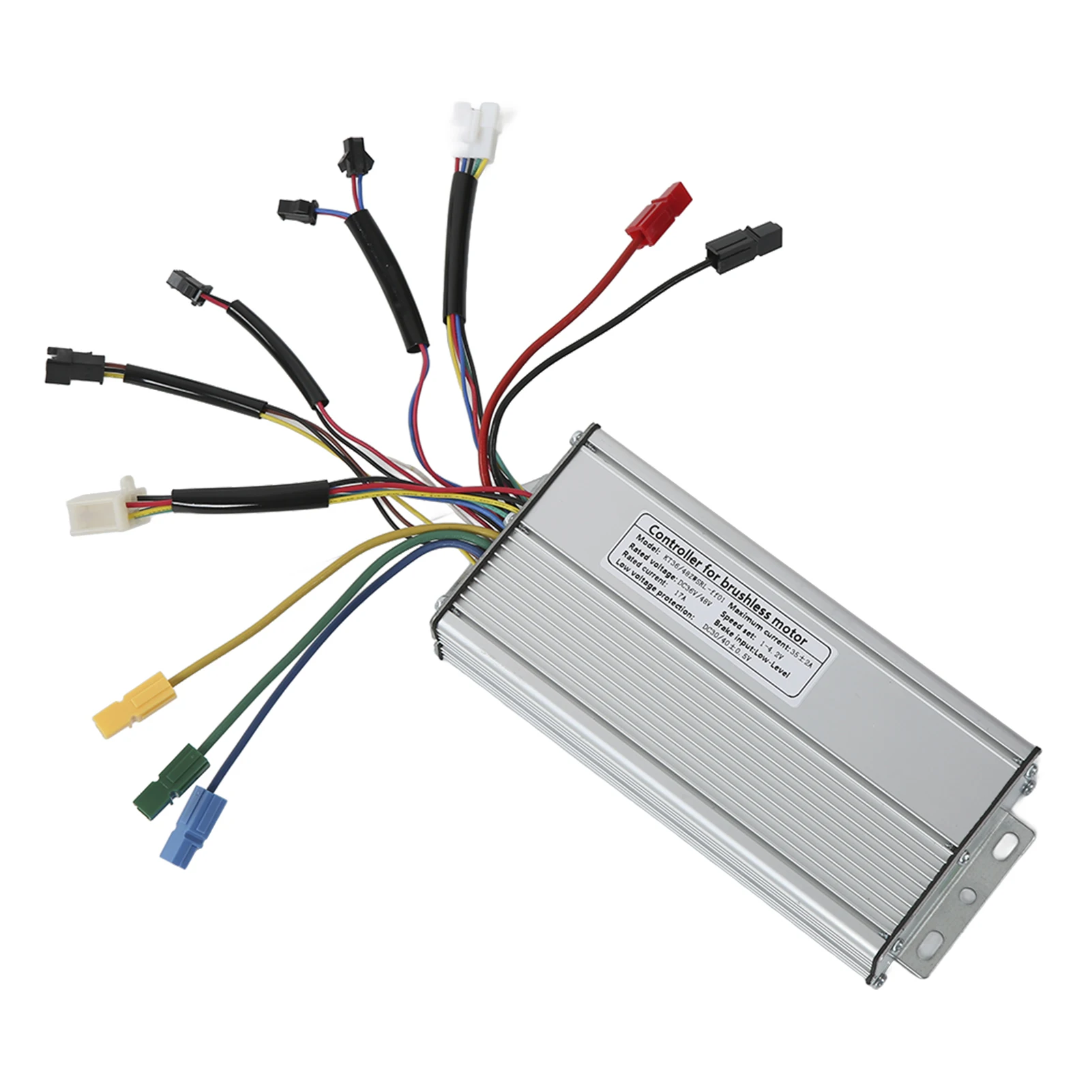

Controller Box Size: Approx. 193x83x42mm / 7.6x3.3x1.7in
Motor Opening Size: 170mm / 6.7in, 190mm / 7.5in

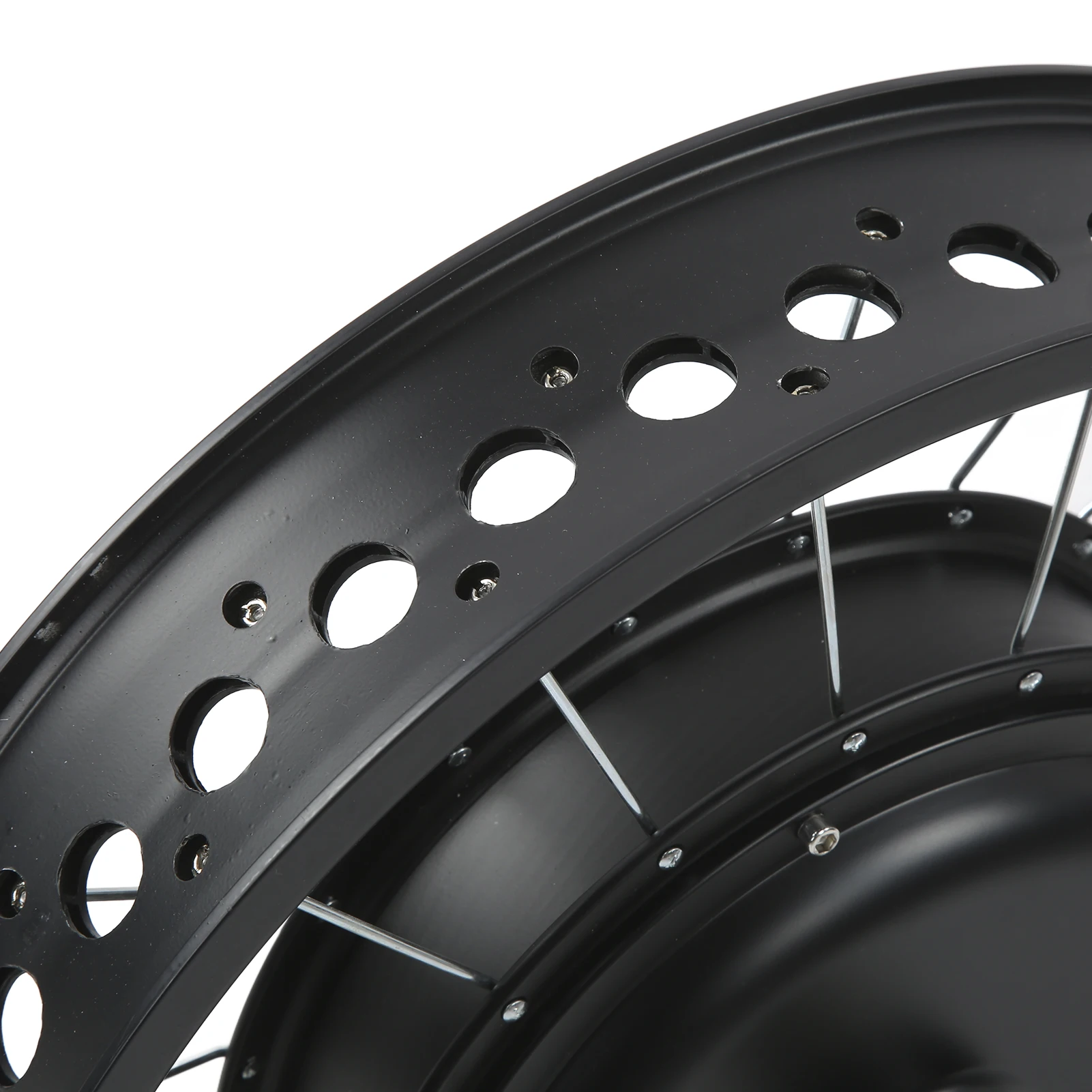

Motor Wheel Applicable Tire Size: Approx. 50.8cm/20.0in
Product Weight: Approx. 11150g / 393.3oz

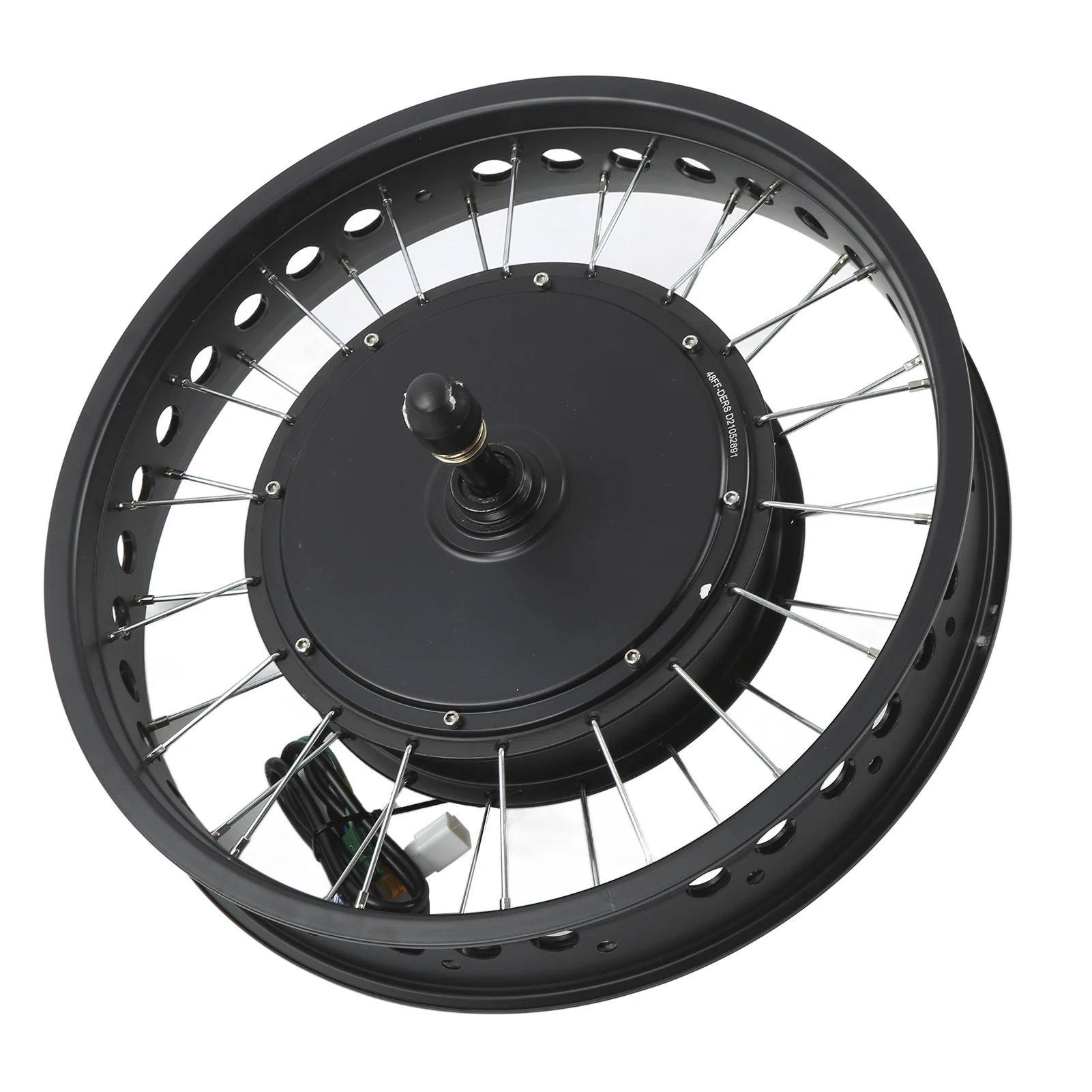

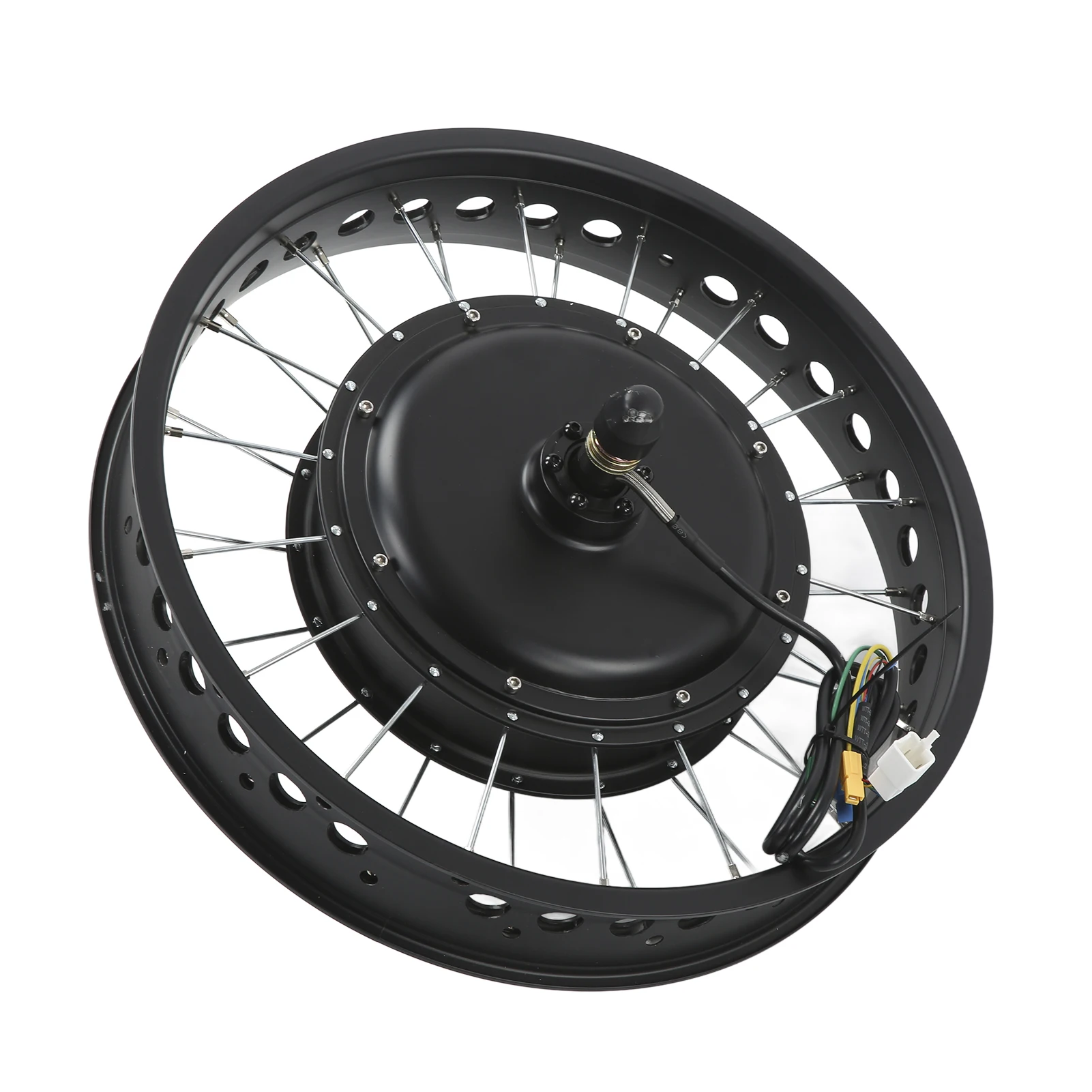

Motor Type: Rear Drive Threaded Freewheel Motor
Motor Voltage: 48V
Motor Power: 1500W
Connector Type: Ordinary Connector

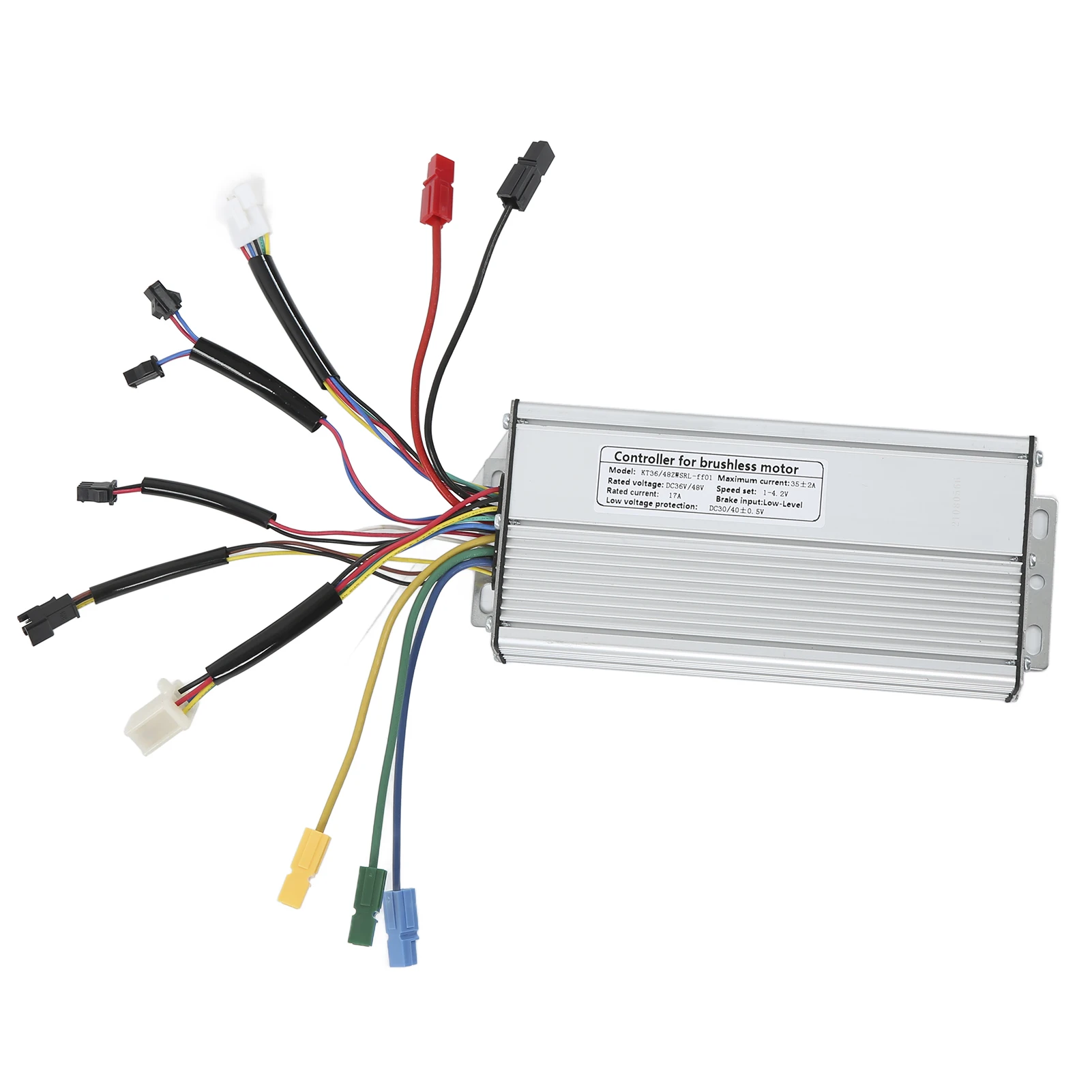

Controller Rated Voltage: DC 36V/48V
Controller Rated Current: 17A
Controller Maximum Current: 35±2A
Controller Speed Setting: 1-4.2V
Controller Brake Input: Low Level
Controller Low Voltage Protection: DC 30/40±0.5V
LCD3 Panel Function Description: Up button, switch button, down button, battery capacity indicator, backlight and headlights, brake display, one way time, total travel time, power display, motor Celsius temperature, motor Fahrenheit temperature, ambient Celsius temperature, ambient Fahrenheit temperature, 6km/h Thrust assist, riding speed (metric system), riding speed (imperial system), maximum speed, average speed, distance (metric system), distance (imperial system), riding distance, total distance, battery voltage, Power Assist Sensor sign, cruise function.

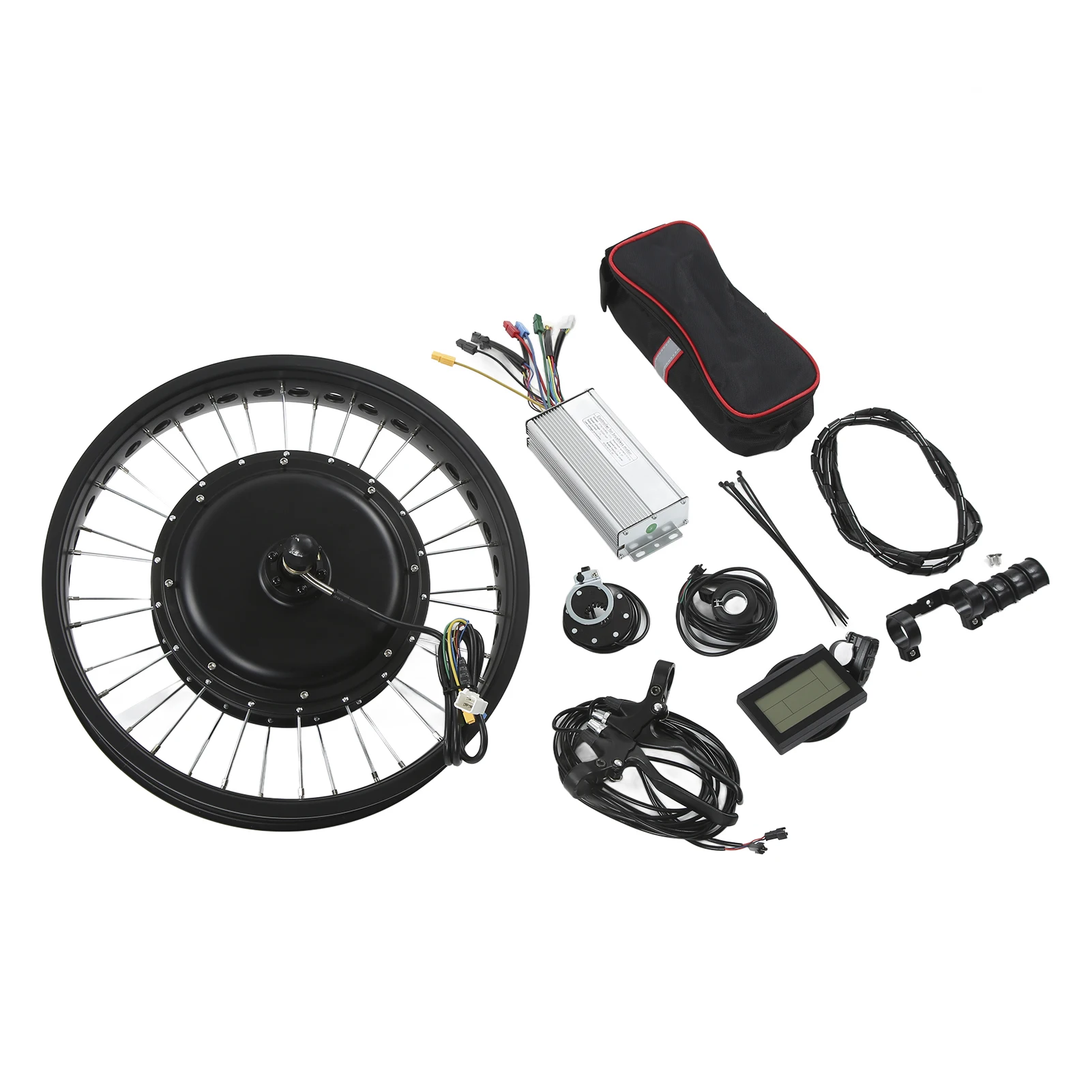

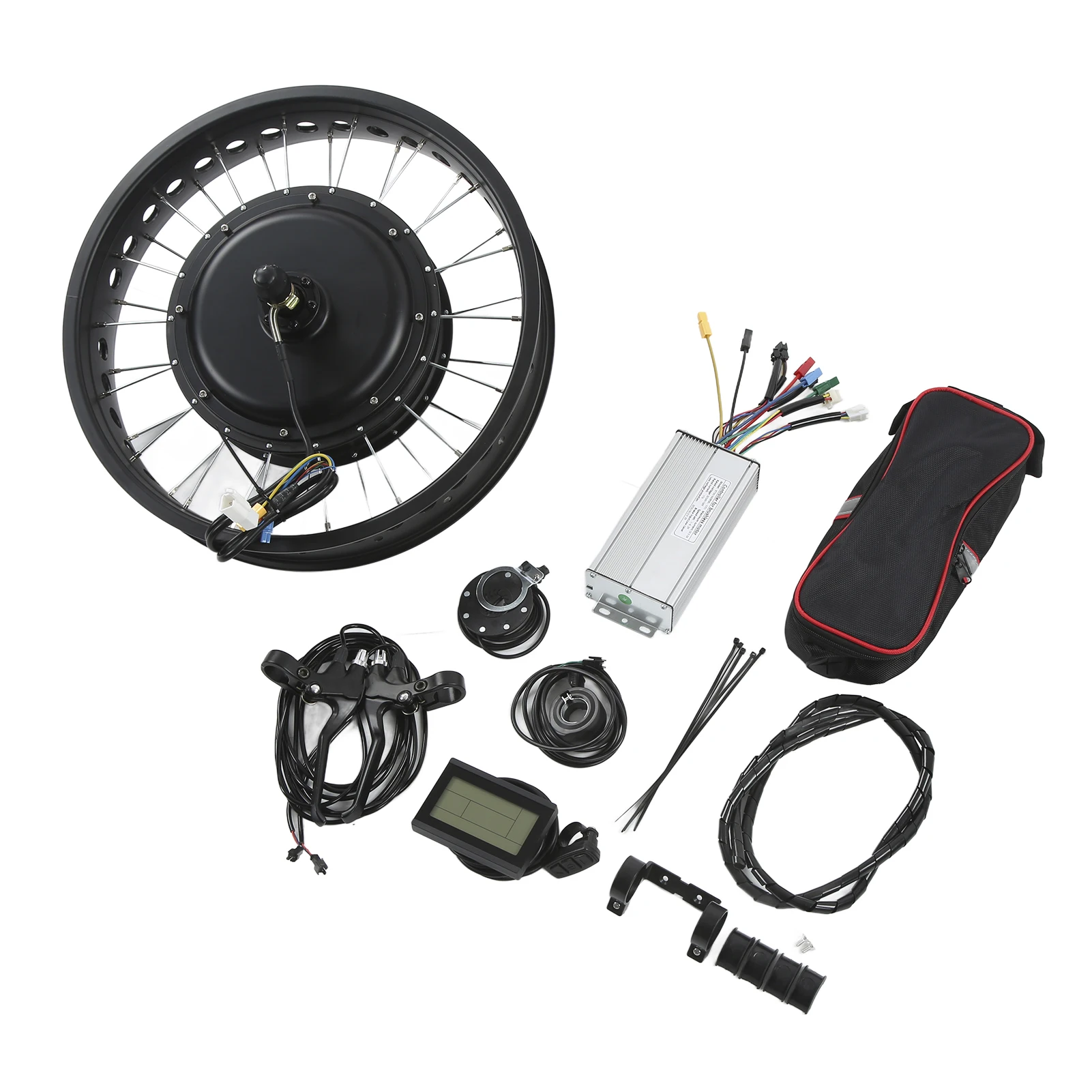

Package List:

1 x Rear Drive Motor Wheel

1 x Controller

1 x LCD3 Meter

1 x Meter Mounting Bracket

4 x Meter Mounting Bracket Gasket

2 x Meter Mounting Bracket Screw

1 x Meter Manual

1 x Thumb Throttle

2 x Power Off Brake Lever

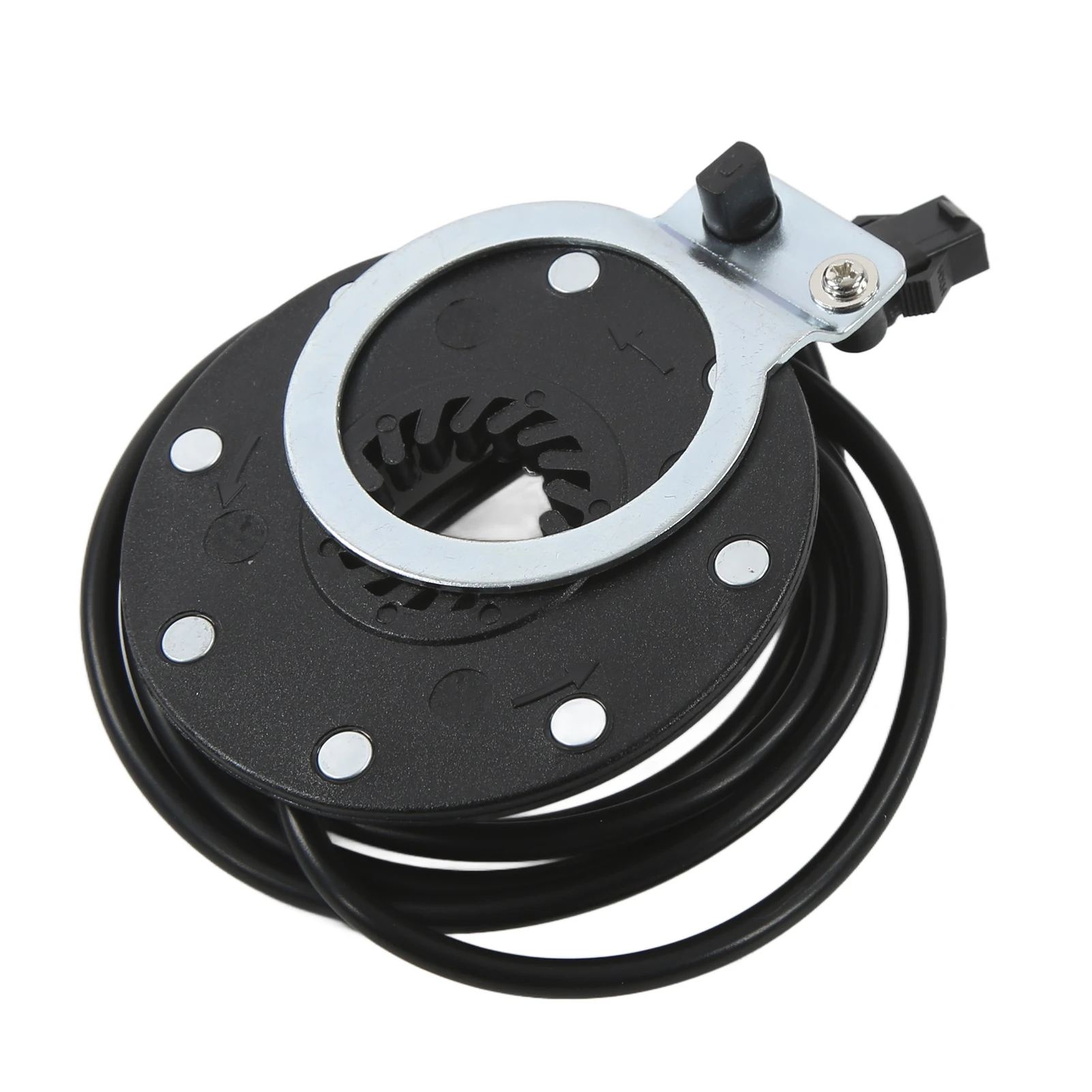

1 x 8C Power Assist Sensor

5 x Cable Tie

1 x Winding Tube

1 x Controller Bag

1 x Controller Wiring Manual



Note:

Pay attention to the size of rear drive shift, power and voltage to match can be applied
